Frankenstein Engine Dynamics

FED LS DUAL SPRING KIT .660" LIFT

$450.00
Cylinder Head and Guide:OEM .505 Powder Metal Guide

The FED Dual .660 spring kit is a great option for LS aftermarket performance engines. This spring kit works great for high-RPM, N/A power, and boosted setups. Frankenstein and PAC Racing worked together to bring a very versatile spring that outperforms the typical polished .660 springs on the market. We offer this spring kit for stock valve guide (.505) and bronze guide (.565) applications.

These use a high-grade titanium retainer, black oxide steel locator, and 7mm GM valve locks. Our spring kit is a drop-in for stock heads and aftermarket heads.

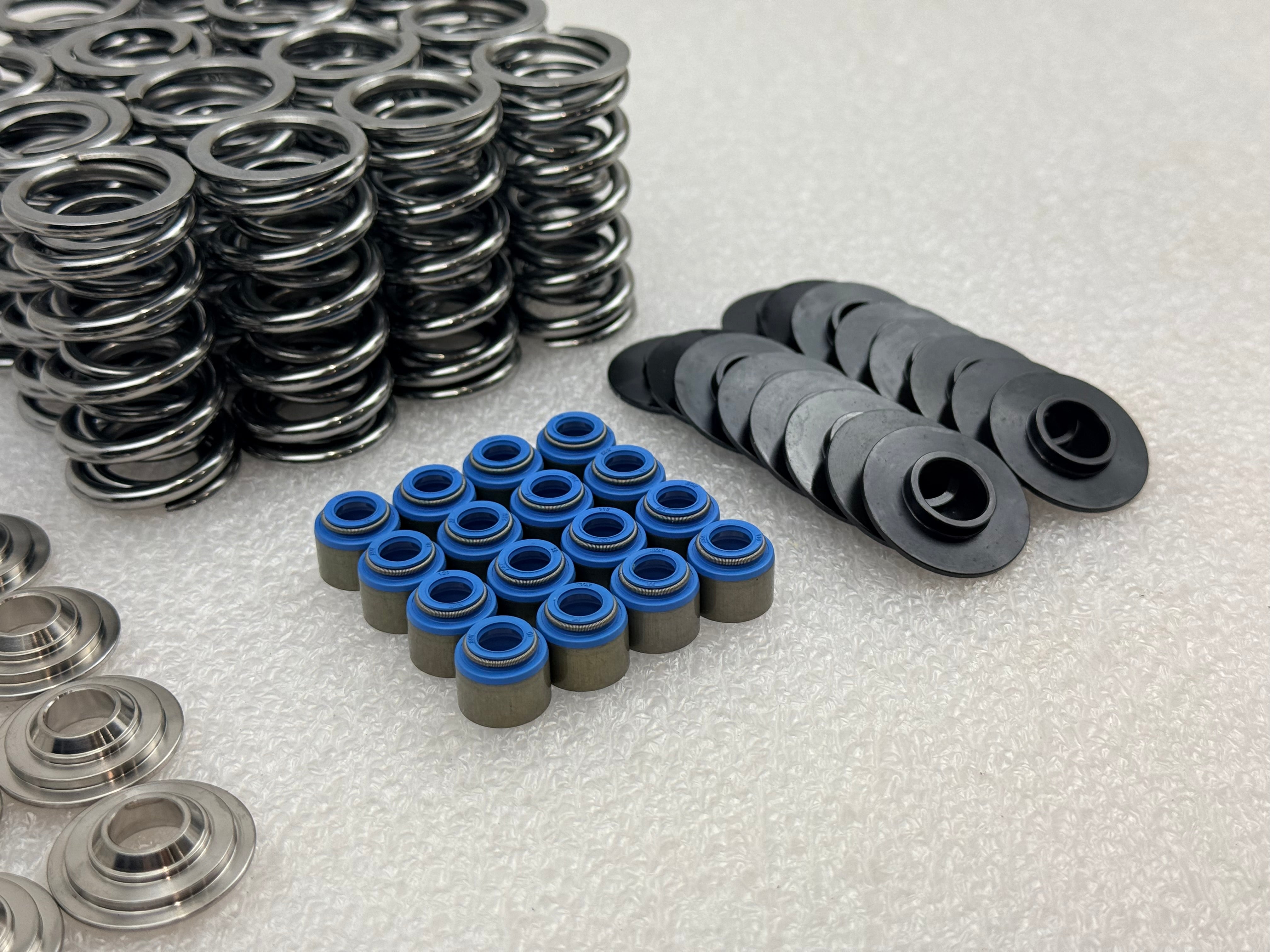

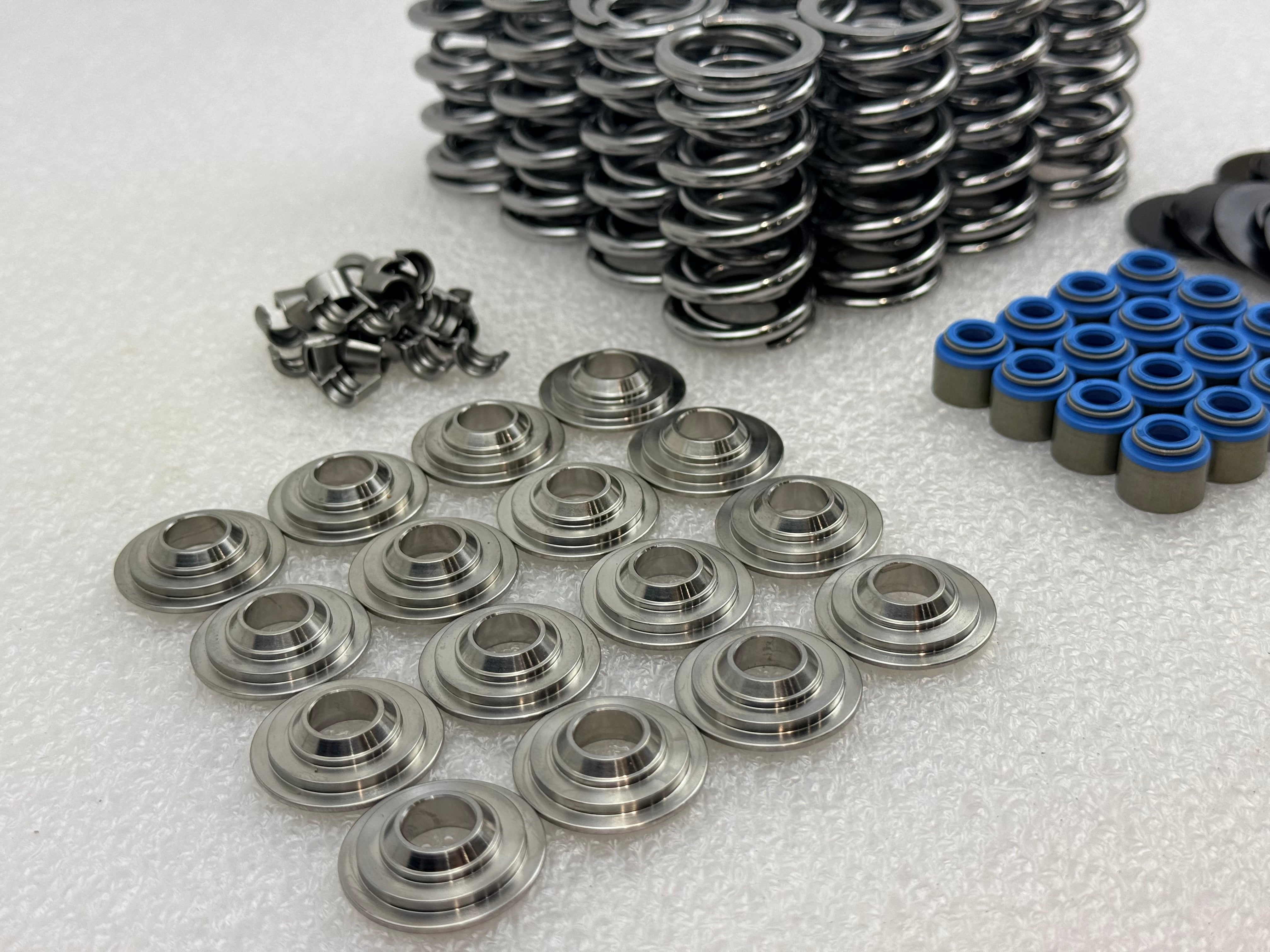

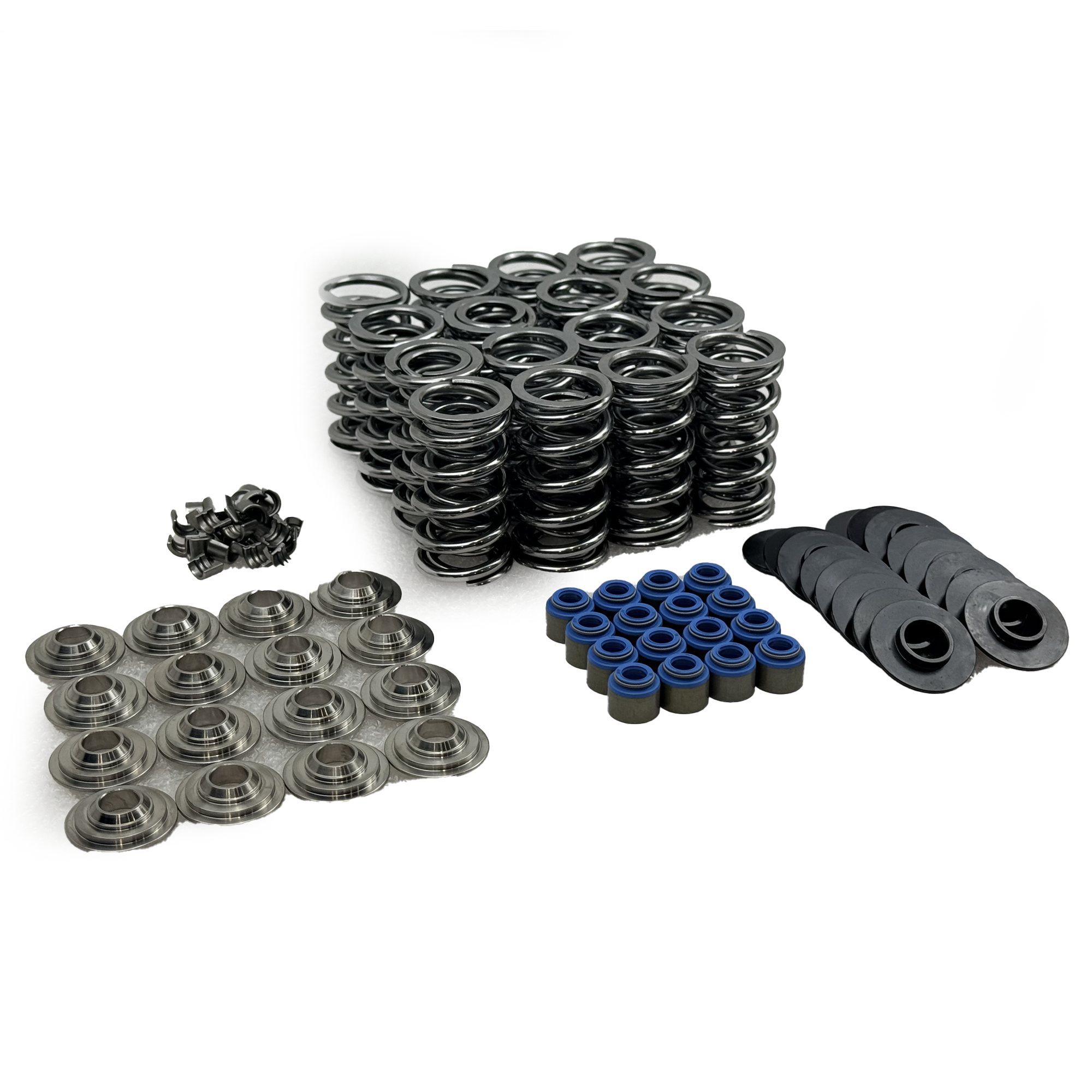

Kit includes:

FED .660 dual spring (16)

GM LS locks (32)

Titanium retainers (16)

Locators for stock or bronze guides (16)

Viton High Heat Valve Seals (16)

Spring specs:

FED .660" Lift Spring Kit

  • Installed Height: 1.800"

  • Seat Pressure: 149 # @ 1.800"

  • Open Pressure: 396 # @ 1.140"

  • Max Recommended Lift: .660"

  • Coil Bind Height: 1.085"

  • Spring Rate: 375 lbs/in

  • O.D.: 1.293"

  • Outer I.D.: .948"

  • Inner I.D.: .670"

Spring Pressure by Valve Lift

  • .575" Lift — 358 #

  • .600" Lift — 370 #

  • .625" Lift — 380 #

  • .650" Lift — 390 #

  • .660" Lift — 396 #
